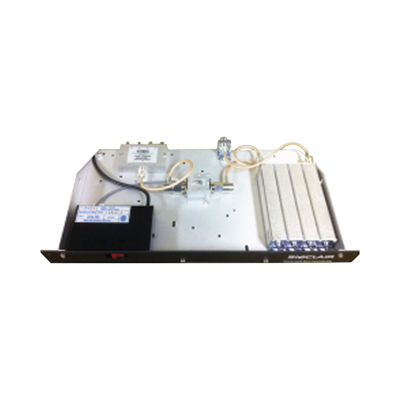

SINCLAIR multicoupler model RM301-204G11N



RM301-204G11N SINCLAIR Multicoupler with Preselector for 4 Channels 440-470 MHz 1 MHz Band Width 115 Vac N Hemos connectors.

Mechanical specifications

  • Width: 19 in (483 mm)
  • Depth: 10 in (254 mm)
  • Length / Height: 1.78 in (45 mm)
  • Weight: 5.5 lbs (2.5 kg)
  • Real Sending Weight: 10 lbs (4.54 kg)
  • Shipment dimensions: 22 x 18 x 4 in (559 x 457 x 102 mm)

Electrical Specifications

  • Frequency range: 440-470 MHz. Number of Channels: 4. Band width: 1 MHz.. System gain: 2 dB. Connectors (Ant. / Departures): N Hemos. VSWR Input / Salids (max.): 1.5: 1. Impedance: 50 Ohm. Power Consumption (Typical): 4 Watt. Compression point at 1 dB: 24 dB. Rx-Rx insulation: 20 dB. Power voltage: 115-220 Vac.

Environmental specifications

  • Temperature range: -22 to 140 ° F (-30 to 60 ° C)
