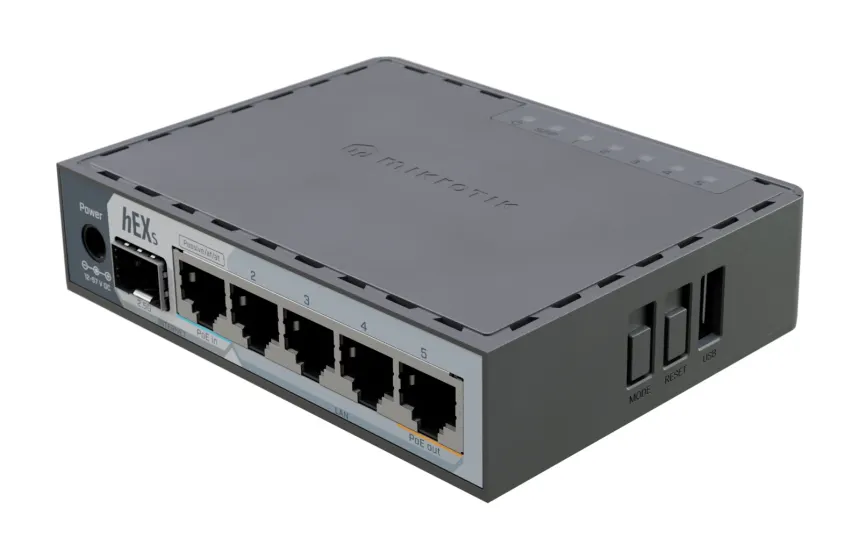

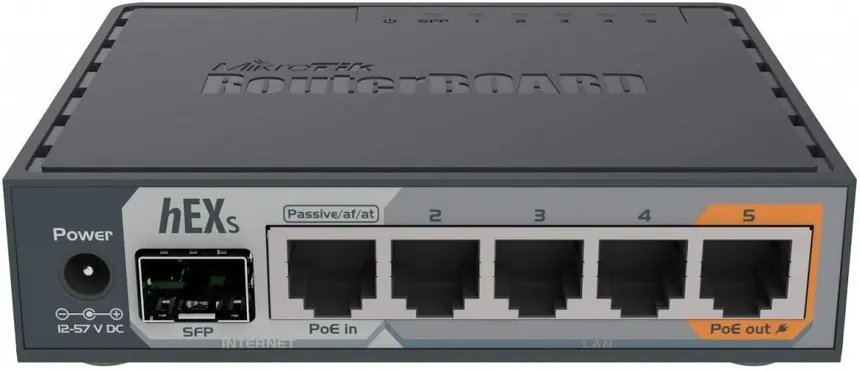

Router hEX S
The HEX S is a router with five Ethernet Gigabit ports, for places where wireless connectivity is not required. Compared to the hEX, the hEX S also includes a SFP port and PoE output in its last port.
It is affordable, small and easy to use, but at the same time it comes with a powerful 880 MHz double core CPU, and 256 MB RAM, trained for all advanced configurations that RouterOS includes. The device has a USB 2.0 port, PoE output in the Ethternet port # 5, and a 1.25 Gbit / s. cabinet
The IPsec encryption and the Dude server are included, the microSD port provides an improved r / w speed for information storage and the Dude.
Product specifications
| DETAILS |
| Product code |
RB760iGS |
| Architecture |
MMIPS |
| CPU |
MT7621A |
| CPU core count |
2 |
| CPU nominal frequency |
880 MHz |
| CPU Threats count |
4 |
| Dimensions |
113 x 89 x 28 mm |
| License level |
4 |
| Operating System |
Ruta |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40 ° C.. 70 ° C |
Food
| DETAILS |
| Max Power consumption |
11W |
| PoE in |
802.3af / at |
| PoE out |
Passive PoE up to 57V |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
Ethernet
| DETAILS |
| 10 / 100 / 1000 Ethernet ports |
5 |
Fibre
Peripheral
| DETAILS |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| DETAILS |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
