Antenna NBE-5AC-GEN2

Categories

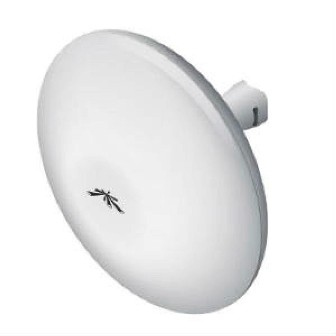

Antenna NBE-5AC-GEN2
Antenna NBE-5AC-GEN2 - Image 2

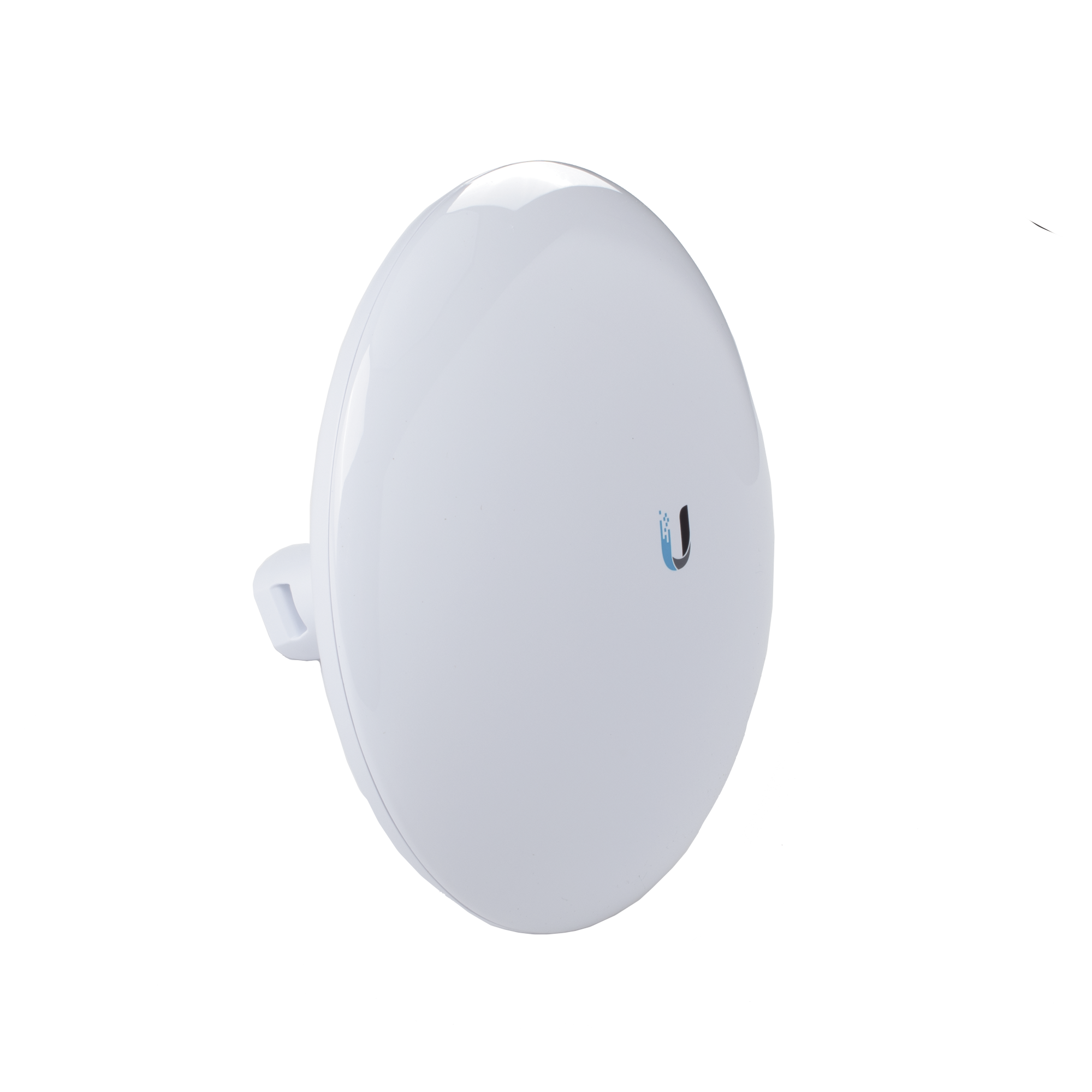

Antenna NBE-5AC-GEN2 - Image 3
Antenna NBE-5AC-GEN2 - Image 4
Antenna NBE-5AC-GEN2 - Image 5

Sku

Antenna NBE-5AC-GEN2

CPE Exterior Ubiquiti Networks NanoBeam NBE-5AC-GEN2 of 5GHz LAN Ubiquiti Networks NBE-5AC-GEN2. Wi-Fi administration radio. Protection against improved overvoltage. Incredible performance.

airMAX NanoBeam 5AC NBE-5AC-GEN2

The Ubiquiti NanoBeam 5AC Gen2 (NBE-5AC-Gen2) is a high performance wireless external bridge designed for point-to-point (PtP) and point-to-point (PtMP) long-range connectivity. It operates in the 5 GHz frequency band and takes advantage of Ubiquiti's AC airMAX technology to provide reliable and high-performance connections even in noisy RF environments.

Key features include narrower beam width to improve noise immunity, a Radio dedicated to the management of Wi-Fi for easy configuration through mobile devices, and airView ® spectrum analysis for real-time RF diagnoses. The integrated design combines radio and antenna in a compact, open-ended cabinet (IP67 classification), making it ideal for cost-effective implementations where space and performance are important.

Mechanical

  • Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92 ″)
  • Weight 530 g (1.17 lb)
  • Enclosure material UV-stabilized plastic
  • Mounting Pole mount kit (Included)
  • Wall mount (Not included)
  • Wind loading 45.4 N at 200 km / h (10.2 lbf at 125 mph)
  • Wind survival 200 km / h (125 mph)

Hardware

  • Networking interface (2) GbE RJ45 ports
  • Power method Passive PoE 2-pair (4, 5 +; 7, 8 return)
  • Power supply 24V, 0.5A gigabit PoE adapter (Included)
  • Supported voltage range 20-27V DC
  • Max. power consumption 8.5W
  • ESD / EMP protection Air / contact: ± 24kV
  • LEDs Power, Ethernet, (4) Signal strength
  • Salt fog test IEC 68-2-11 (ASTM B117)
  • Equivalent: MIL-STD-810 G method 509.5
  • Vibration test IEC 68-2-6
  • Temperature shock test IEC 68-2-14
  • UV IEC test 68-2-5 at 40 ° C (104 ° F)
  • Equivalent: ETS 300 019-1-4
  • Wind-driven rain test ETS 300 019-1-4
  • Equivalent: MIL-STD-810 G method 506.5
  • Ambient operating temperature -40 to 80 ° C (-40 to 176 F)
  • Ambient operating humidity 5 to 95% noncondensing
  • EC, FCC, IC certificates
  • NDAA Compliant Yes
