Antena Networks IS-M5

Ubiquiti Networks IS-M5 outside antenna installed in Ubiquiti Networks IS-M5 post

• Specifications
• Dimensions (5.16 x 5.16 x 2.56 ″)
• Weight (1.60 lb)
• Network interface (1) Ethernet port 10 / 100 / 1000
• LED
• Maximum energy consumption 8.5W

Maximum transmission power 25 dBm

• Power supply
• 24 V, 0.5 A Gigabit PoE adapter (included)
• Passive PoE feeding method (pairs 4, 5 + for one-way and 7, 8 for return)
• Admitted voltage range 20 to 26 V CC
• Wind load 36 N and 200 km / h (8.09 lbf and 125 mph)
• Wind resistance 200 km / h (125 mph)
• Operating temperature from -40 to 70 ° C (from -40 ° F to 158 ° F)
• Operating humidity 5 to 95% without condensation

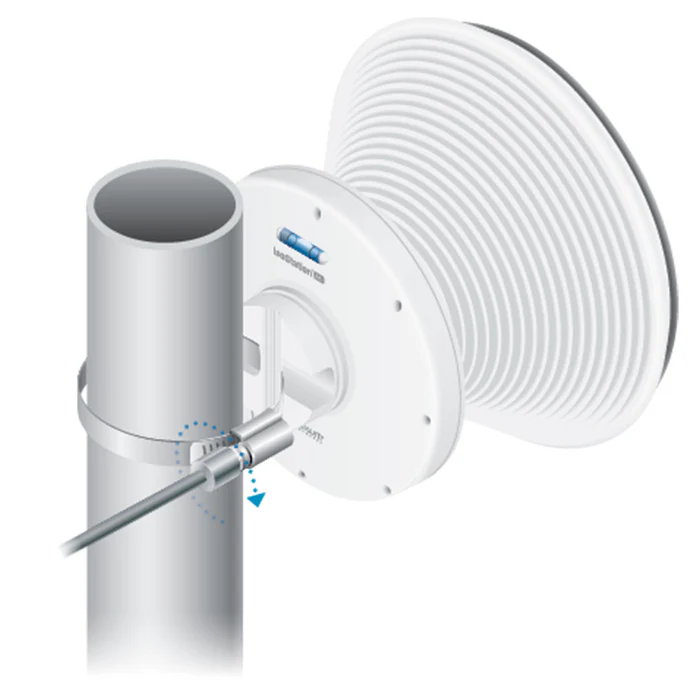

• Mounting Post assembly (kit included)
• ESD / EMP protection ± 24 kV contact / air
• EC, FCC, IC certificates
