HAP router ac ³ LTE6 kit
Forget the endless search for the perfect router and slide for an eternity of reviews and specifications, we have created a simple and affordable home access point that has all the features you may need for the next few years.
The hAP ac ³ LTE6 kit features our newest CAT6LTE modem. This allows you to add carriers, allowing you to use the LTE connection with speeds up to 300 Mbps. It works using multiple LTE bands at the same time. A huge advantage when there are many LTE users in the area. Depending on the service provider, we have seen the internet speed double after switching to CAT6.

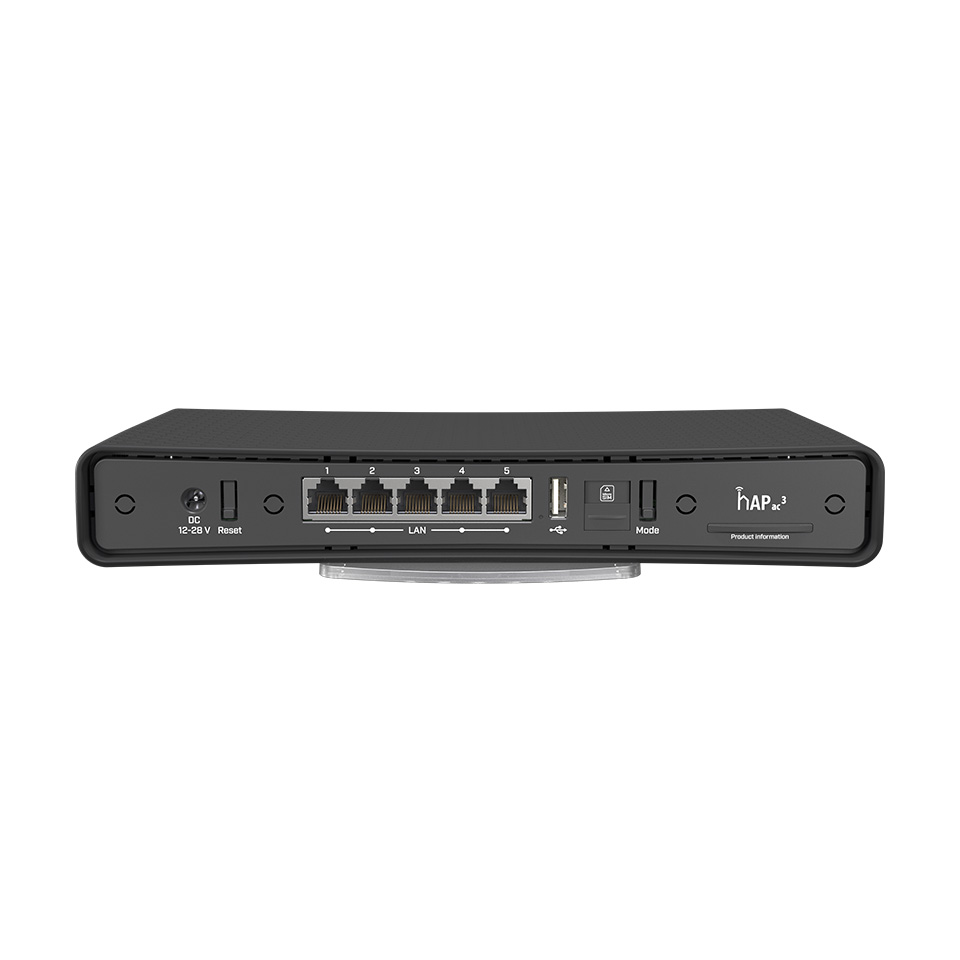

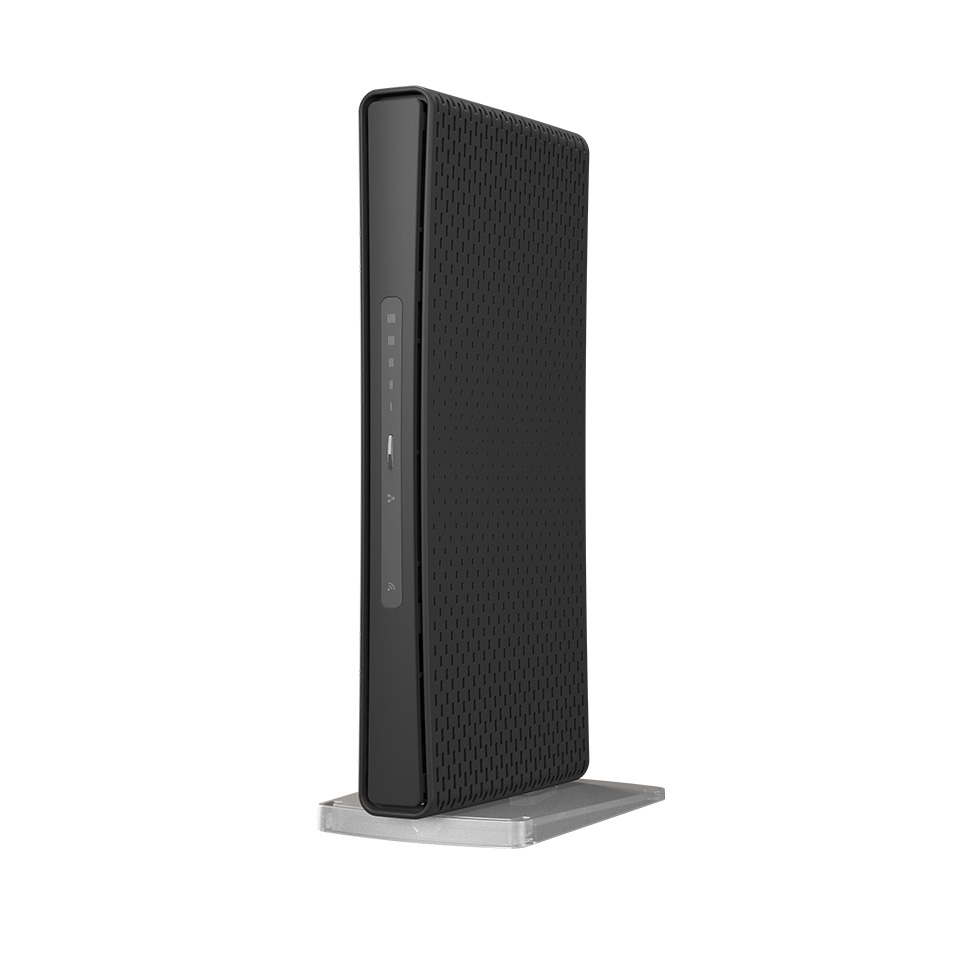

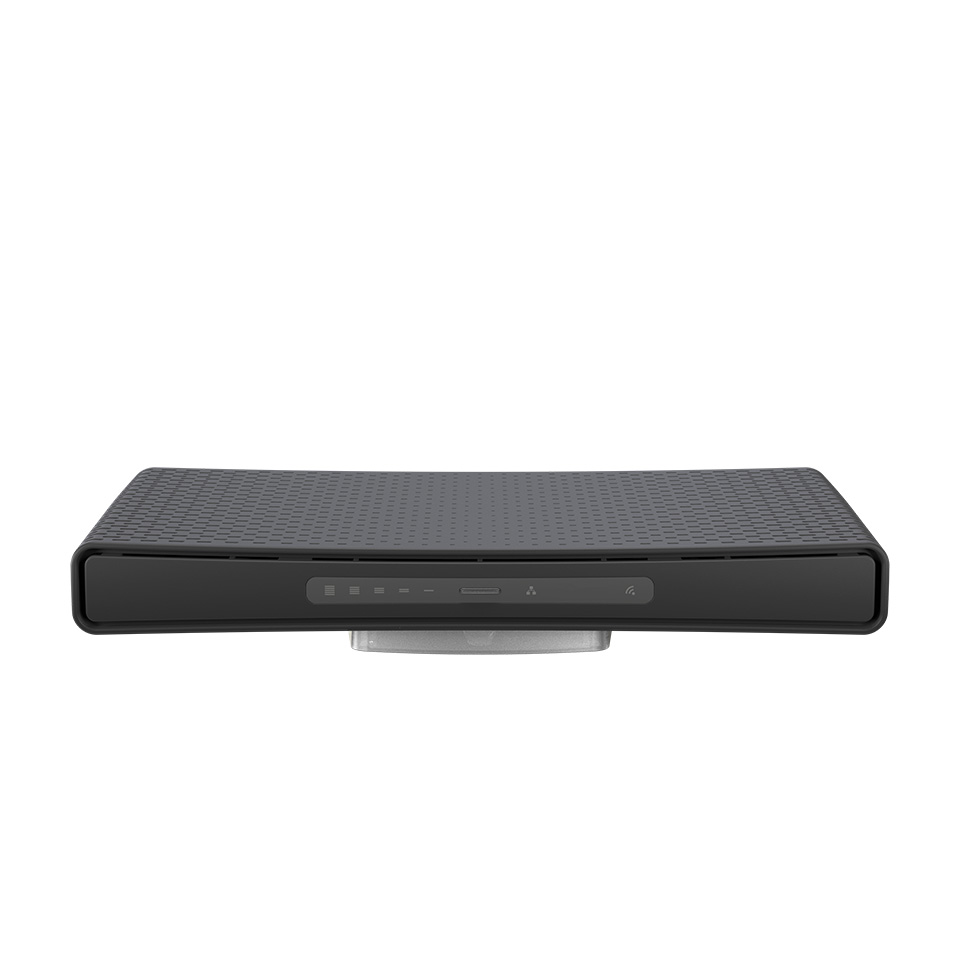

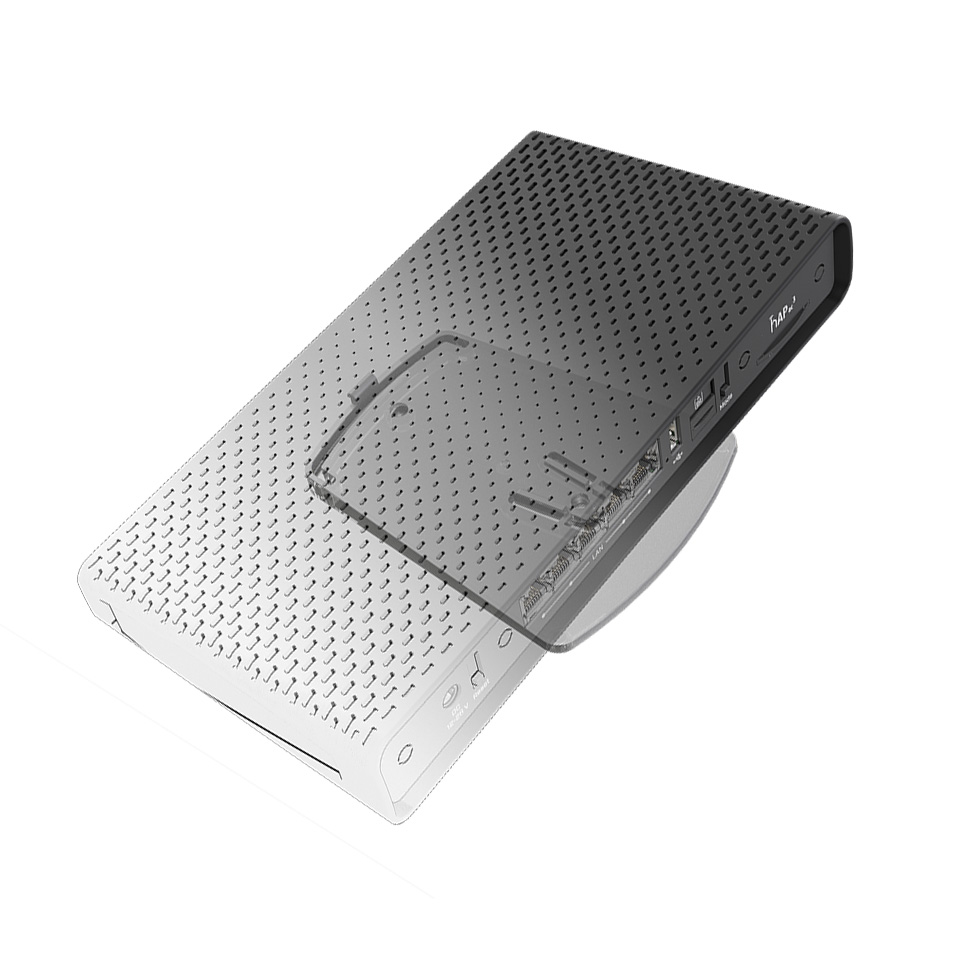

With 5 Gigabit Ethernet, 256 MB RAM and Quadcore CPU ports, the hAPac ³ LTE6 kit can meet even the largest and most demanding scenarios. It has a full size USB port that you can use to expand storage. The new housing allows you to mount it vertically or horizontally. Includes wall mounting set.
No more sharing the frequency with all its neighbours, a strong double-string 2.4 / 5GHz band for concurrent coverage will solve almost any interference situation in crowded environments. This team is a "you must have" today. You can use the 2.4 GHz frequency for old equipment and the 5 GHz band for everything else, as this frequency is less disordered.
Product specifications
| DETAILS |
| Product code |
RBD53GR-5HAD2HnD & R11e-LTE6 |
| Architecture |
ARM 32bit |
| CPU |
IPQ-4019 |
| CPU core count |
4 |
| CPU nominal frequency |
716 MHz |
| Dimensions |
251 x 129 x 39 mm |
| License routerOS |
4 |
| Operating System |
Ruta |
| Size of RAM |
256 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 200 '000 hours at 25C |
| Tested ambient temperature |
-30 ° C to 60 ° C |
| IPsec hardware Acceleration |
Yes |
Food
| DETAILS |
| Number of DC inputs |
1 (DC jack) |
| DC jack input Voltage |
12-28 V |
| Max power consumption |
20 W |
| Max power consumption without attachments |
16 W |
| FAN count |
Passive |
Mobile
| DETAILS |
| 2G Category |
Class12 |
| 2G bands |
2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category |
R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category |
6 (300Mbit / s Downlink, 50Mbit / s Uplink) |
| LTE FDD bands |
1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
Inalaminal specifications
| DETAILS |
| Wireless 2.4 GHz Max data rate |
300 Mbit / s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b / g / n |
| Antenna gain dBi for 2.4 GHz |
3 |
| Wireless 2.4 GHz chip model |
IPQ-4019 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless 5 GHz Max data rate |
867 Mbit / s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a / n / ac |
| Antenna gain dBi for 5 GHz |
5.5 |
| Wireless 5 GHz chip model |
IPQ-4019 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| DETAILS |
| 10 / 100 / 1000 Ethernet ports |
5 |
Peripheral
| DETAILS |
| Number of SIM slots |
1 Modem (Micro SIM) |
| MiniPCI-e slots |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
Certifications and approvals
| DETAILS |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
