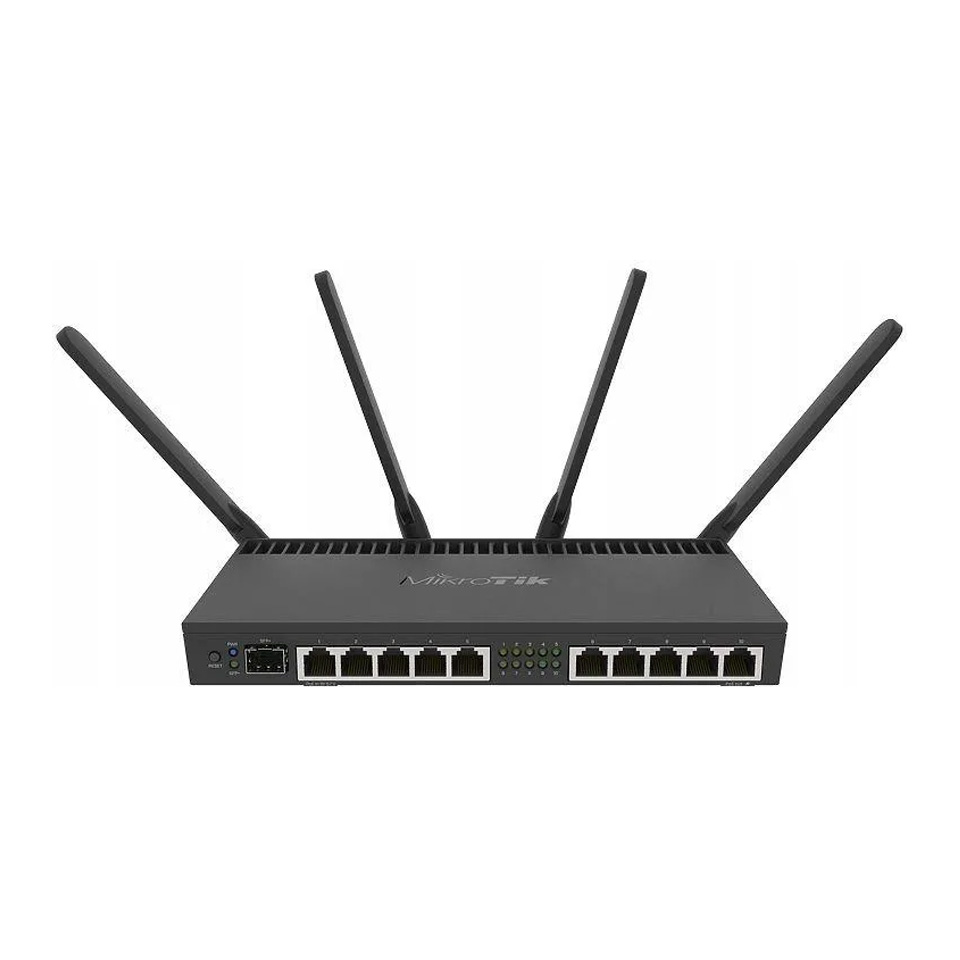

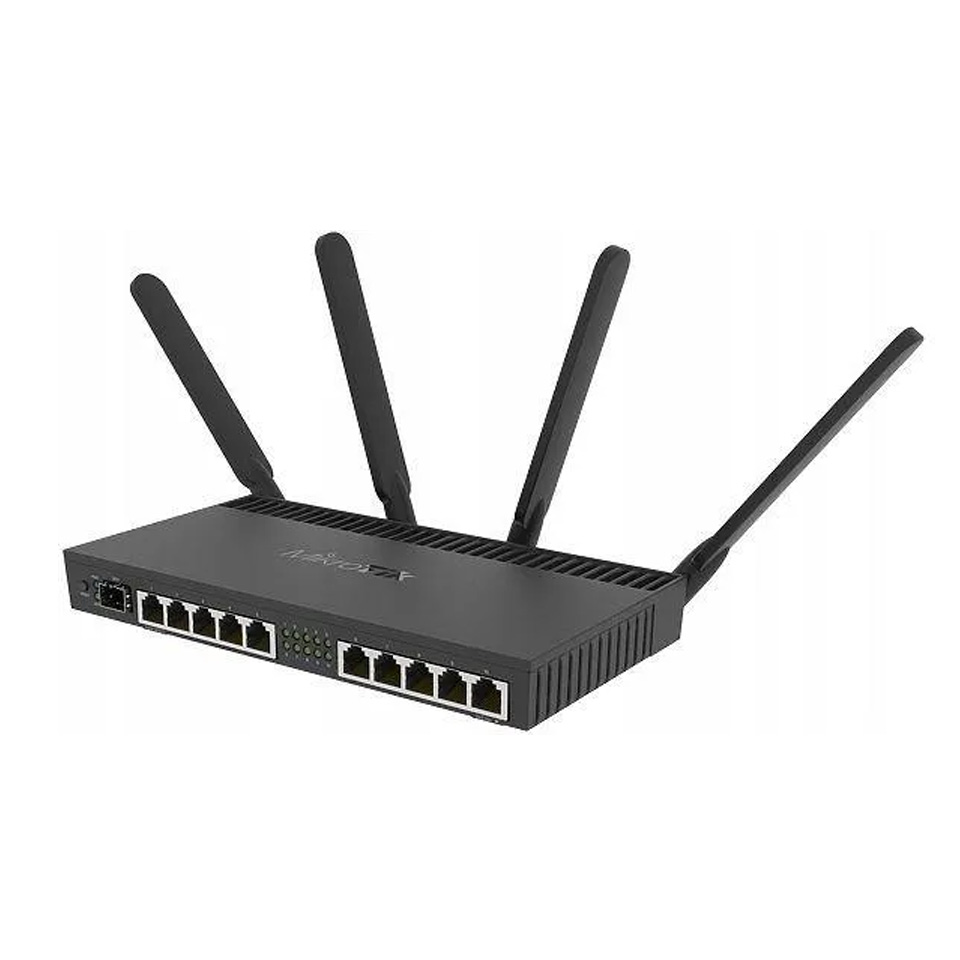

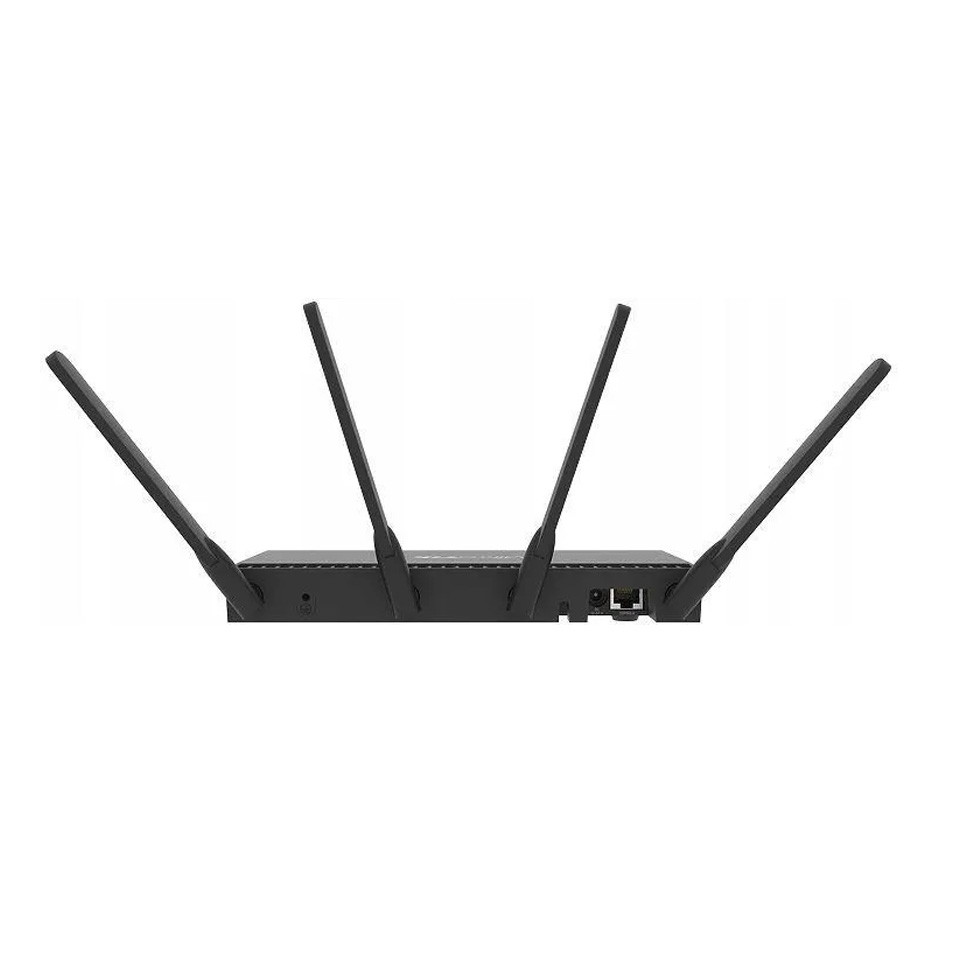

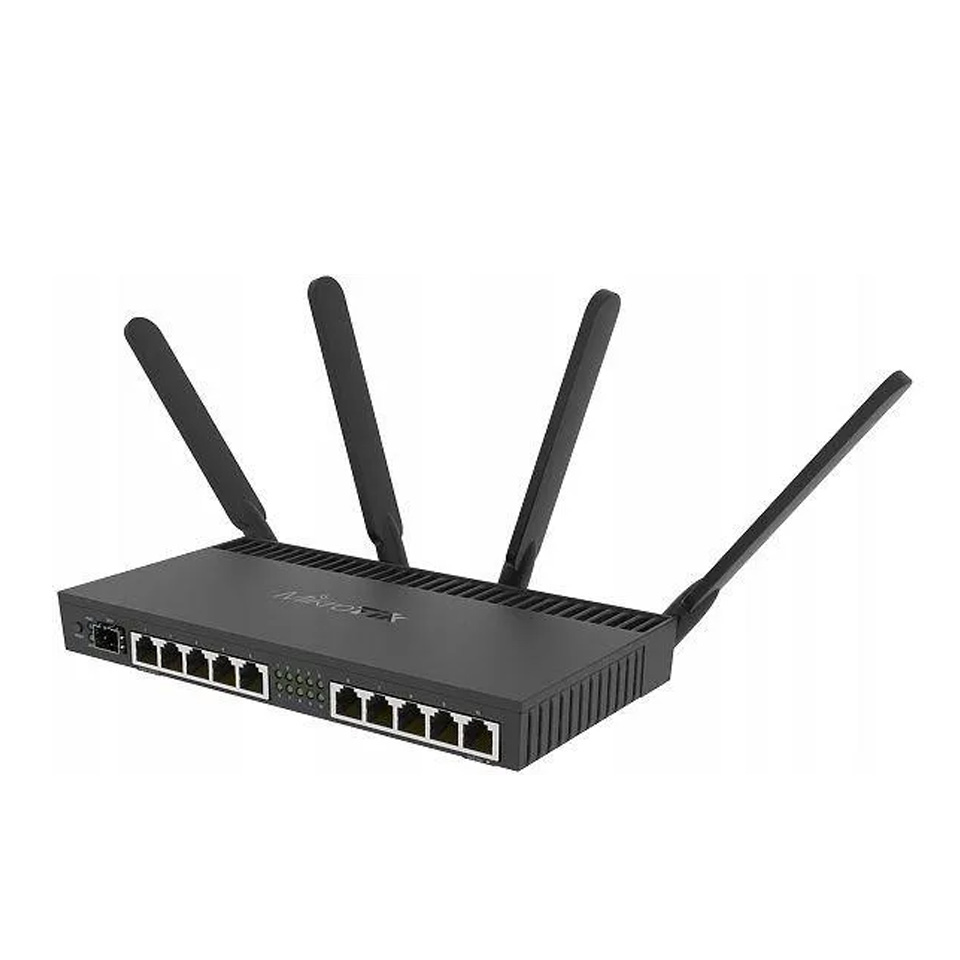

Router RB4011iGS + 5HacQ2HnD-IN
The RB4011 series are surprisingly powerful routers with 10 Gigabit ports, 10Gbps SFP interfaces, and IPsec protocol, all for a great price.
The RB4011 uses a Cortex A15 quad core CPU, same as our RB1100AHx4 carrier level model. The unit is equipped with 1Gb RAM, can provide PoE in port # 10, and comes with a metal cabinet in matt black, compact and professional.
The RB4011iGS 5HacQ2hnD-IN (WiFi model) is a double-band, four-string unit with a range of 1733 Mbps in 5GHz. For inherited devices, the unit also has a 2.4 Ghz double-chain wireless card, and a miniPCI-- port.
Product specifications
| DETAILS |
| Product code |
RB4011iGS 5HacQ2HnD-IN |
| Architecture |
ARM 32bit |
| CPU |
AL21400 |
| CPU core count |
4 |
| CPU nominal frequency |
1.4 GHz |
| Dimensions |
228 x 120 x 30 mm |
| License level |
5 |
| Operating System |
Ruta |
| Size of RAM |
1 GB |
| Storage size |
512 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40 ° C to 45 ° C |
Food
| DETAILS |
| PoE in |
Passive PoE |
| PoE out |
Passive PoE up to 57V |
| PoE in input Voltage |
18-57 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| Max out per port output (input > 30 V) |
420 mA |
| Max out per port output (input < 30 V) |
600 mA |
| Total Max out (A) |
600 mA |
| Max power consumption |
44 W |
| Max power consumption without attachments |
23 W |
Wireless card
| DETAILS |
| Wireless 5 GHz number of chains |
4 |
| Wireless 5 GHz Max data rate |
1733 Mbit / s |
| Wireless 5 GHz standards |
802.11ac MIMO |
| AC speed |
AC2000 |
| Antenna gain dBi for 5 GHz |
3 |
| Wireless 5 GHz chip model |
QCA9984 |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz Max data rate |
300 Mbit / s |
| Wireless 2.4 GHz standards |
802.11b / g / n |
| Antenna gain dBi for 2.4 GHz |
3 |
| Wireless 2.4 GHz chip model |
R11e-2HnD |
Ethernet
| DETAILS |
| 10 / 100 / 1000 Ethernet ports |
10 |
Fibre
Peripheral
| DETAILS |
| MiniPCI-e slots |
1 |
| Serial port |
RJ45 |
Other
| DETAILS |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Wireless specifications
| 5 GHZ |
TRANSMIT (DBM) |
RECEIVE SENSITIVENTY |
| 6MBit / s |
33 |
-96 |
| 54MBit / s |
29 |
-81 |
| MCS0 |
33 |
-96 |
| MCS7 |
28 |
-77 |
| MCS9 |
26 |
-72 |
| 2.4 GHZ |
TRANSMIT (DBM) |
RECEIVE SENSITIVENTY |
| 1MBit / s |
28 |
-100 |
| 11MBit / s |
28 |
-94 |
| 6MBit / s |
29 |
-96 |
| 54MBit / s |
25 |
-80 |
| MCS0 |
26 |
-96 |
| MCS7 |
24 |
-79 |
